ABS CNC Machining Service
Get precision CNC ABS machined parts with quick turnaround times and cost-effective solutions. Choose from different ABS material options and surface finishes to create high-quality prototypes and production components that meet your specific design requirements.
ABS in CNC Machining
ABS (Acrylonitrile Butadiene Styrene) is a popular engineering thermoplastic used for CNC machining because of its excellent balance of strength, impact resistance, and machinability. It provides good dimensional stability and allows manufacturers to create detailed prototypes, functional components, and production parts with consistent accuracy.

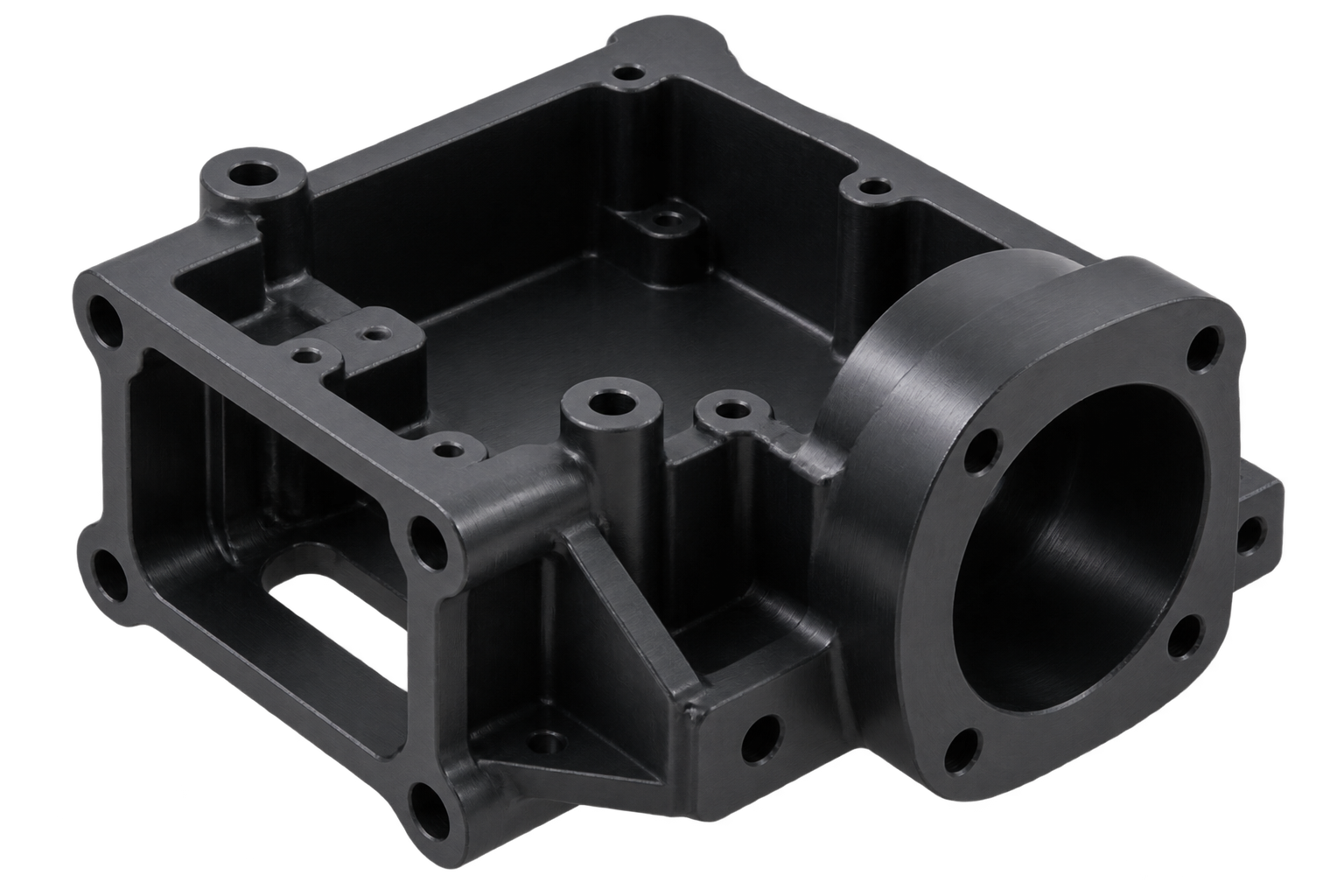

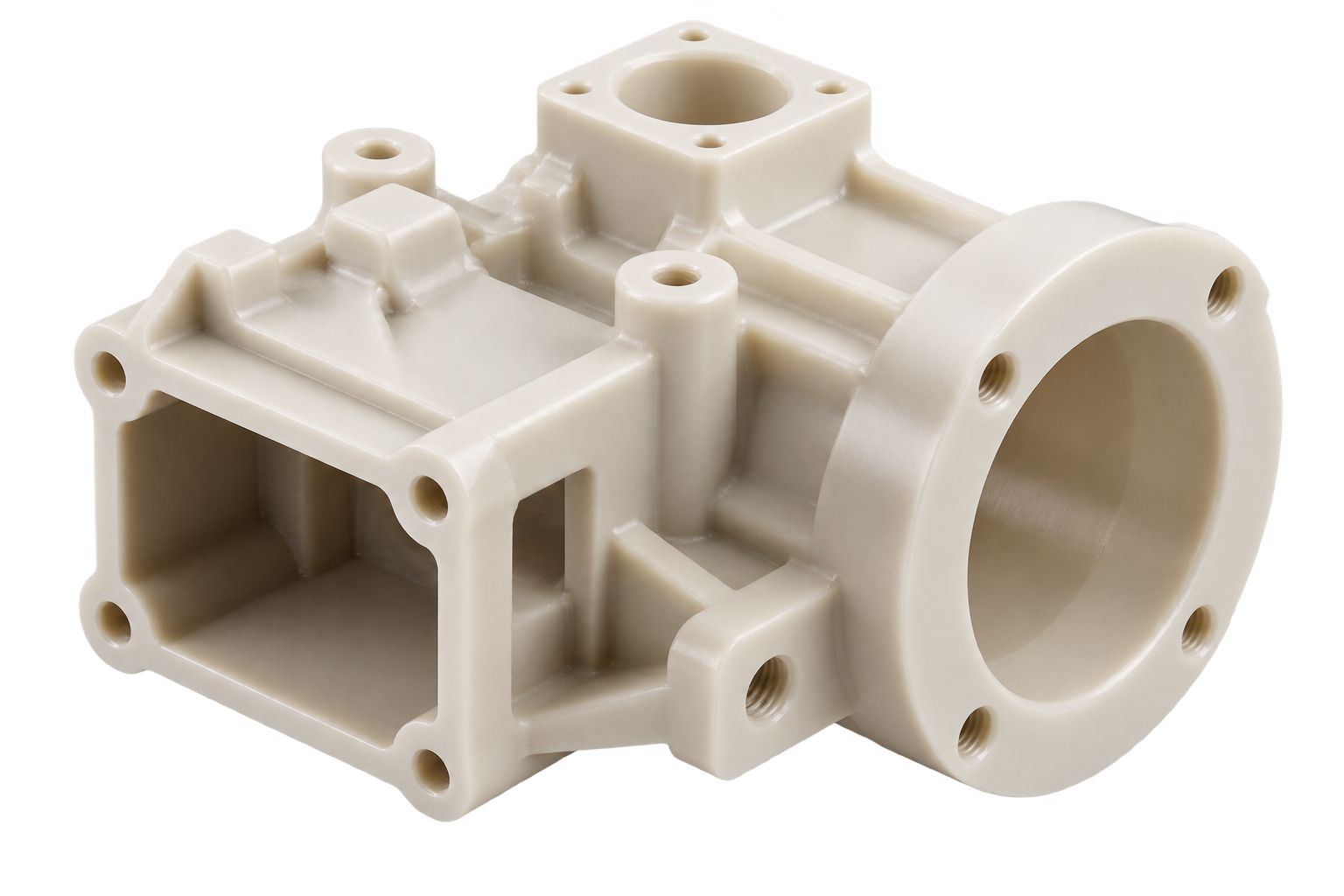

| Available Brass | Natural Beige, Black, White, Custom Colors on Request |
| Price | $ |
| Lead time | Under 10 days |
| Wall thickness | Minimum 0.8 mm |
| Tolerances | ±0.125 mm (±0.005 in) |
| Max part size | 1200 x 500 x 150 mm |
ABS CNC Machining Materials
Machined ABS Properties
ABS is widely used in CNC machining due to its excellent impact resistance, durability, lightweight properties, and ease of fabrication. Its balanced mechanical performance makes it suitable for prototypes, functional components, enclosures, and custom machined parts.
Advantages and Limitations of ABS CNC Machining
ABS is a widely used thermoplastic in CNC machining because it offers good strength, impact resistance, and easy machinability. However, it also has some limitations that should be considered when selecting it for a project.
- Excellent Machinability:
ABS can be easily CNC machined to create precise features, complex geometries, and detailed components. - High Impact Resistance:
The material provides strong resistance against mechanical impacts and everyday stress, making it suitable for durable parts. - Cost-Effective Material:
ABS is an affordable engineering plastic, making it a practical choice for prototypes and low-volume production parts. - Good Dimensional Stability:
ABS maintains its shape and size under normal operating conditions, helping produce accurate and consistent components. - Versatile Applications:
CNC machined ABS parts are used across industries, including automotive, electronics, consumer products, and industrial equipment.
- Limited Heat Resistance:
ABS can soften or deform when exposed to high temperatures, limiting its use in heat-intensive applications. - Low UV Resistance:
Extended exposure to sunlight or UV radiation may cause discoloration and material degradation. - Moderate Chemical Resistance:
ABS may be affected by certain chemicals and solvents, making it less suitable for harsh chemical environments.
Partner with Tuowei Precision to Shape Your Vision
From rapid prototypes to scalable production, Tuowei Precision delivers reliable CNC machining with accuracy and consistency at every step. Start your project today.
- Established engineering skills.
- Global project support
- Advanced CNC solutions
- Co-creation of products.
- Expandable capacity of production.
- All uploads are secure and confidential
CNC Machining Tolerances
Our CNC machines operate with precision tolerances that meet industry standards, ensuring that every part is consistently accurate and fits perfectly with other components.
| Feature Type | Typical Tolerance |
|---|---|
| General Dimensional Tolerance | ±0.025 mm (±0.001″) |
| High Precision Tolerance | ±0.005 mm (±0.0002″) |
| Hole Diameter (Drilled) | ±0.05 mm (±0.002″) |
| Hole Diameter (Reamed/Bored) | ±0.01 mm (±0.0004″) |
| Shaft Diameter (Turned) | ±0.01 mm (±0.0004″) |
| Flatness | 0.02 mm per 100 mm |
| Parallelism | ±0.02 mm |
| Perpendicularity | ±0.02 mm |
| Surface Roughness (Ra) | 1.6–3.2 μm (63–125 μin) |
| Positional Tolerance | ±0.01 mm to ±0.02 mm |
| Thread Tolerance (Cut) | 6H / 6g (ISO) or Class 2A/2B (ANSI) |
| Minimum Feature Size | 0.5 mm (0.020″) |
| Repeatability | ±0.005 mm (±0.0002″) |
Brass CNC Machining FAQs
Can ABS plastic be machined?
Yes, ABS plastic is highly suitable for CNC machining. Its excellent machinability allows manufacturers to create accurate parts with complex designs, smooth finishes, and consistent dimensions while maintaining structural strength.
What is the best method for cutting ABS plastic?
CNC milling is one of the most effective methods for cutting ABS plastic because it provides precise cuts, detailed features, and excellent control over complex geometries. CNC machining helps produce accurate ABS components with reliable quality.
What are common applications for CNC-machined ABS plastic?
CNC machined ABS parts are commonly used for prototypes, enclosures, housings, covers, brackets, and functional components. The material is widely used in automotive, electronics, medical devices, consumer products, and industrial applications.
Is ABS easy to machine?
Yes, ABS is considered an easy-to-machine plastic. It provides clean cuts, good dimensional stability, and smooth surface finishes, making it suitable for producing accurate prototypes and production parts.
Why should I choose ABS CNC machining over injection molding?
ABS CNC machining is a practical choice for prototypes, custom parts, and low to medium-volume production because it does not require expensive molds. It also allows faster design changes and provides flexibility for producing complex geometries.
