5 Axis CNC Machining Services
TUOWEI Precision offers advanced 5-axis CNC machining for high-precision parts with complex geometries. Whether it’s intricate prototypes or large production runs, we ensure precision and efficiency.
- Conquer Complex Designs in One Setup
- Achieve Premium Finishes for Critical Industries
- Hold Tolerances to ±0.005 mm (±0.0002″) with Confidence
- Scale Flexibly, No Minimum Order
- Accelerate from CAD to Part
- Quick-turn prototypes and production in days
- Quick-turn prototypes and production in days
- ISO 9001:2015, ISO 13485
- IATF 16949:2016, AS9100D certified
- All uploads are secure and confidential
What is 5-Axis Machining?
5-axis CNC machining represents the pinnacle of advanced manufacturing. This process allows the cutting tool to move simultaneously across five axes, enabling the creation of highly complex and precise geometries in a single setup. By reducing the need for multiple fixtures, it ensures greater efficiency, accuracy, and surface quality. Industries such as aerospace, automotive, robotics, and medical devices depend on 5-axis machining to produce intricate components that demand uncompromising precision.
State-of-the-Art 5-Axis CNC Machining Services
TUOWEI Precision operates a state-of-the-art fleet of advanced 5-axis machining centers, including both horizontal and vertical configurations. This capability allows us to manage everything from complex prototypes to large-scale production with exceptional accuracy and efficiency. Our skilled team and cutting-edge equipment ensure precise, reliable results across industries such as aerospace, automotive, medical, and electronics.
Looking for custom 5-axis CNC machining solutions? TUOWEI precision delivers strong, durable, and highly accurate parts in a wide range of shapes and sizes. Contact us today for a free quote and experience machining excellence tailored to your project needs
5-Axis CNC Machining Excellence

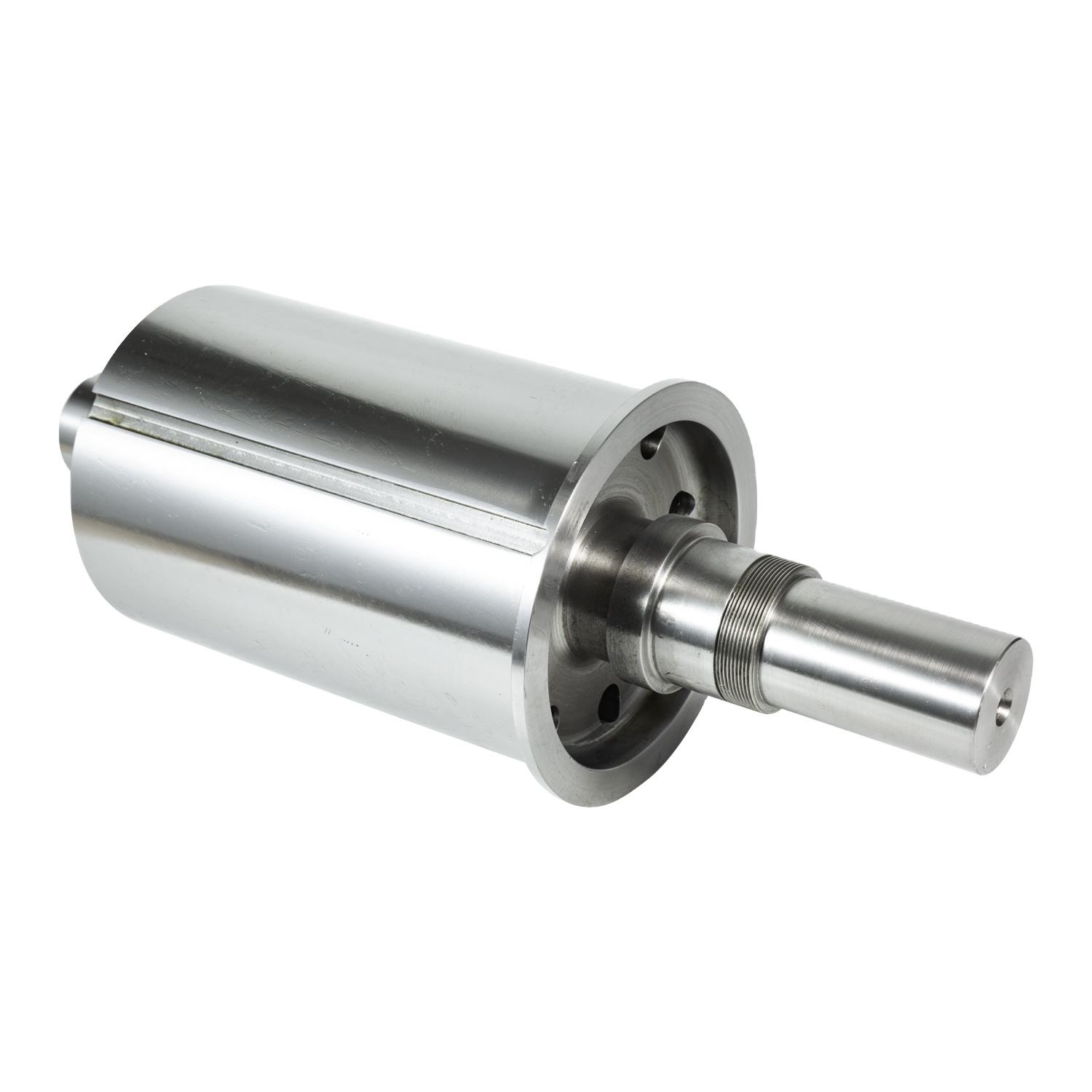

TUOWEI Precision delivers advanced 5-axis CNC machining for complex, high-accuracy components, supported by our ISO 9001 certification. We ensure tight tolerances, superior dimensional stability, and reliable precision for every project.
| Features | Details |
|---|---|
| Maximum Part Size | 4000 × 1500 × 600 mm |
| Minimum Part Size | 5 × 5 × 5 mm |
| General Tolerances | ±0.002 mm |
| Lead Time | 2–3 days for standard operations; up to 2 weeks for complex projects |
Surface Finishes For 5 Axis CNC Machining
Here are some surface finishing techniques that are commonly used to enhance the quality and performance of the machined parts:
Polishing smooths the surface, providing a high-gloss finish that improves both appearance and resistance to wear.
This process adds a protective oxide layer to metal surfaces, increasing corrosion resistance and enhancing aesthetic appeal.
Bead blasting involves spraying fine beads onto the surface to create a smooth, matte finish with a uniform texture.
Electroplating adds a thin metal coating to a surface, offering enhanced corrosion resistance, wear protection, and improved conductivity.
Lapping is a precision process that improves surface flatness and smoothness, reducing surface roughness for high-tolerance applications.
Shot peening involves bombarding the surface with small spherical media, improving fatigue resistance and reducing stress concentrations.
Materials for 5 Axis CNC Machining
Engineers and leading manufacturers trust TUOWEI for fast iterations and durable, high-performance parts. Whether for prototyping or full-scale production, our extensive material selection ensures precision, strength, and reliability for any CNC Milling project.
Aluminum
Aluminum 5052
Aluminum 7075 & 7075-T6
Aluminum 6063-T5
Aluminum 7050-T7451
Aluminum MIC-6
Aluminum 6061-T6
Aluminum 2024-T3
Bronze/Brass
Brass C360
Brass 260
C932 M07 Bearing Bronze
Copper
H59
H60
Plastics
ABS
Acetal [Delrin]
Acrylic, G-10 Garolite
Nylon 6/6
PEEK, Polycarbonate
PTFE [Teflon]
Polypropylene
Ultra-High Molecular Weight Polyethylene
Steel
Alloy Steel 4130
Alloy Steel 4140
ASTM A36, Stainless Steel 15-5
Stainless Steel 17-4
Stainless Steel 18-8
Stainless Steel 303
Stainless Steel 304
Stainless Steel 316/316L
Stainless Steel 416, Stainles Steel 420
Steel 1018
Steel A36
Titanium
Titanium Grade 2
Titanium 6Al-4V
Zinc
Zinc Sheet Alloy 500
Simultaneous 5-Axis vs. 3+2 Axis CNC Machining
Simultaneous 5-Axis Machining
At TUOWEI Precision, our simultaneous 5-axis machining provides fast, efficient, and continuous cutting with exceptional surface quality. Using advanced machining centers, all five axes move together without interruption, ensuring seamless transitions and superior accuracy for even the most complex geometries.
3+2 Axis Machining
Our 3+2 axis machining offers a cost-effective solution for parts requiring multiple orientations. The workpiece is fixed at specific angles, allowing traditional 3-axis machining to achieve complex shapes. With shorter, more rigid tools, this method enhances dimensional stability and delivers tight tolerances while reducing cycle times.
Trunnion-Style vs. Swivel-Rotate-Style 5-Axis Machining
Trunnion-Style Machining Centers
Featuring a fixed table with a spindle that moves and rotates on two axes, trunnion-style machines excel in handling large or heavy workpieces. The stable table support allows precise machining from multiple angles in a single setup, making it efficient for complex, large-scale parts.
Swivel-Rotate-Style Machining
In this configuration, the workpiece is mounted on a rotating and tilting table, while the spindle stays fixed. This setup is ideal for smaller or more delicate parts, offering excellent accessibility and precision. Swivel-rotate machines are perfect for intricate geometries that demand accuracy and high-quality finishes.
With Tuowei Precision’s CNC Turning service, you’re not just investing in advanced machinery. You’re gaining the assurance of flawless precision, commitment to strict timelines, and the expertise of skilled professionals dedicated to meeting your needs.
Why Choose Us?
High Quality Parts
Tuowei Precision’s ISO-certified CNC machining guarantees exceptional accuracy and quality. Every part is crafted for perfect fit and flawless performance, with rigorous quality control at each stage.
Stay on schedule with Tuowei Precision. Our state-of-the-art equipment and local workshops deliver rapid production to meet your tight deadlines.
Rely on our team for comprehensive CNC machining support. Our experts are available to optimize design efficiency and ensure top-quality results at every step.
Design Guidelines for 5-Axis CNC Machining
At TUOWEI Precision, our 5-axis CNC machining design guidelines guarantee efficient, accurate, and structurally sound parts across a variety of applications.
| Features | Recommended Size |
|---|---|
| Maximum Feature Size | Ensure part dimensions are optimized for precision and structural integrity. |
| Minimum Feature Size | Minimum feature size: 0.5 mm in width or depth for structural integrity. |
| Linear Dimensions | Precision tolerance within ±0.005 mm for accuracy across the machined part. |
| Hole Diameters (not reamed) | Holes can be machined with diameters from 1 mm to 40 mm without reaming. |
| Shaft Diameters | Shaft diameters range from 2 mm to 300 mm, considering tool access and torque. |
Advantages
Advantages of 5-Axis CNC Machining at TUOWEI
5-axis CNC machining provides major benefits compared to traditional 3-axis methods, making it the preferred solution for precision-driven and complex projects.
- Complex Geometries: Enables the machining of intricate designs and multi-dimensional shapes from any angle, reducing the need for multiple setups.
- Superior Surface Finish: The tool can maintain an optimal angle, improving the surface finish and reducing the need for additional finishing processes.
- Use of Shorter Cutting Tools: Allows closer tool positioning, reducing deflection and vibration for sharper, more accurate cuts on challenging features.
- Increased Productivity: Streamlines production by consolidating multiple operations into a single setup, cutting lead times significantly. Material Conservation: Optimized tool paths and efficient mach
- Material Conservation: Optimized tool paths and efficient machining reduce waste, particularly valuable when working with costly materials.
Applications
Applications of 5-Axis CNC Machining at TUOWEI
5-axis CNC machining is widely valued for its versatility, enabling the production of complex, high-precision parts across diverse industries.
- Aerospace Components:Ideal for airframe structures and engine parts that demand intricate contours and extreme durability. Common examples include turbine disks, compressor blades, and swivel bearings.
- Automotive parts:Used for producing transmission gears, engine mounts, and hub assemblies. The process handles deep pockets and intricate features with high efficiency.
- Medical Devices: Crucial for crafting custom medical implants, such as hip joints and cranial plates, with tailored shapes and smooth finishes for precise fit.
- Mold and Die Production: Used for making intricate molds and dies, such as injection molds and stamping dies, that require detailed features and tight tolerances
- Marine Parts: Applied in manufacturing boat and marine vehicle components like propellers and hull structures, ensuring durability and high performance in harsh conditions.
- Energy Industry Parts: Essential for producing power generation parts, including wind turbine hubs and solar panel frames, where precision ensures efficiency and long-term reliability.
Partner with TUOWEI to Shape Your Vision
Since the era of rapid prototyping through scalable production, Tuowei Precision helps with your project because of its reliable CNC machining and manufacturing services. Our team collaborates with you to make sure that there is accuracy, consistency, and a smooth execution at all levels.
Begin your project now and start with the first step towards efficient and high quality manufacturing with Tuowei.
- Established engineering skills.
- Global project support
- Advanced CNC solutions
- Co-creation of products.
- Expandable capacity of production.
- All uploads are secure and confidential
Tuowei Proto's Solutions
Whether you’re creating a small batch of custom parts or scaling up for high-volume production, Tuowei Proto services offer the flexibility you need.
CNC rapid prototype machining is perfect for creating engineering or production prototypes that closely resemble the final product in both appearance and functionality. At Tuowei, we offer instant quotes and fast delivery, providing you with precise, high-quality CNC machined prototypes for your needs.
- Lead Time: 1-5 business days
- Capability: 1-100 pcs
- Get 20% off the price
Low volume CNC machining often acts as a bridge between prototyping and mass production for new and emerging production. With Tuowei, this process becomes easier, more efficient, and cost-effective, allowing you to scale production quickly while maintaining high-quality standards.
- Lead Time: 5-15 business days
- Capability: 101-10,000 pcs
- Meet tight specifications
CNC production machining is the best solution for producing a thousand parts or more efficiently. Leveraging a diverse selection of materials and automation and multi-axis capabilities, Tuowei delivers high-volume production with tight tolerances, superior dimensional accuracy, high reliability and fast turnaround times.
- Lead Time: 2-4 weeks
- Capability: Above 10,001 pcs
- Consistent Quality
Explore Insights & Innovation
Keep updated on the real CNC machining, industry trends, and production insights in Tuowei Precision, but is installed to enable you to make better production decisions.
Frequently Asked Questions
5 Axis CNC Machining
What tolerance can TUOWEI achieve with 5-axis CNC machining?
Our advanced 5-axis CNC machines achieve tolerances tighter than ±0.001 inches, depending on material and part complexity. Combined with strict GD&T compliance and rigorous inspection processes, TUOWEI ensures your components meet the highest standards of precision, consistency, and quality.
When should I choose 5-axis CNC machining?
Choose TUOWEI’s 5-axis CNC machining for parts with complex geometries, intricate details, or high-precision requirements. This method is perfect when machining multiple sides in a single setup or when angled tool access is essential. Industries like aerospace, automotive, and medical benefit greatly from this approach, thanks to its ability to shorten lead times and improve surface quality while maintaining tight tolerances.
How much does TUOWEI’s 5-axis milling service cost?
The cost of 5-axis CNC machining depends on part complexity, material type, and required precision. Typical pricing ranges from $75 to $250 per hour. While the hourly rate may be higher than traditional machining, 5-axis milling often lowers overall costs by reducing setups and production time. For an accurate quote, simply share your drawings and material requirements with TUOWEI.
Can 5-axis machining deliver tight tolerances?
Yes. TUOWEI’s 5-axis CNC machining achieves exceptionally tight tolerances, often within ±0.005 mm. Because the process allows access to five sides of a part in a single setup, errors from repositioning are minimized. Simultaneous movement along all axes ensures precise tool paths, making it ideal for complex geometries that demand extreme accuracy.
